Grand Cabin Bulkhead

(0 review)

Grand cabin porthole bulkhead.
Finishes: Raw brass, antique brass, satin nickel.
Base material: Solid Brass
Clear ribbed glass diffuser
Takes 1 x ES / E27 lamp
IP64 Rated

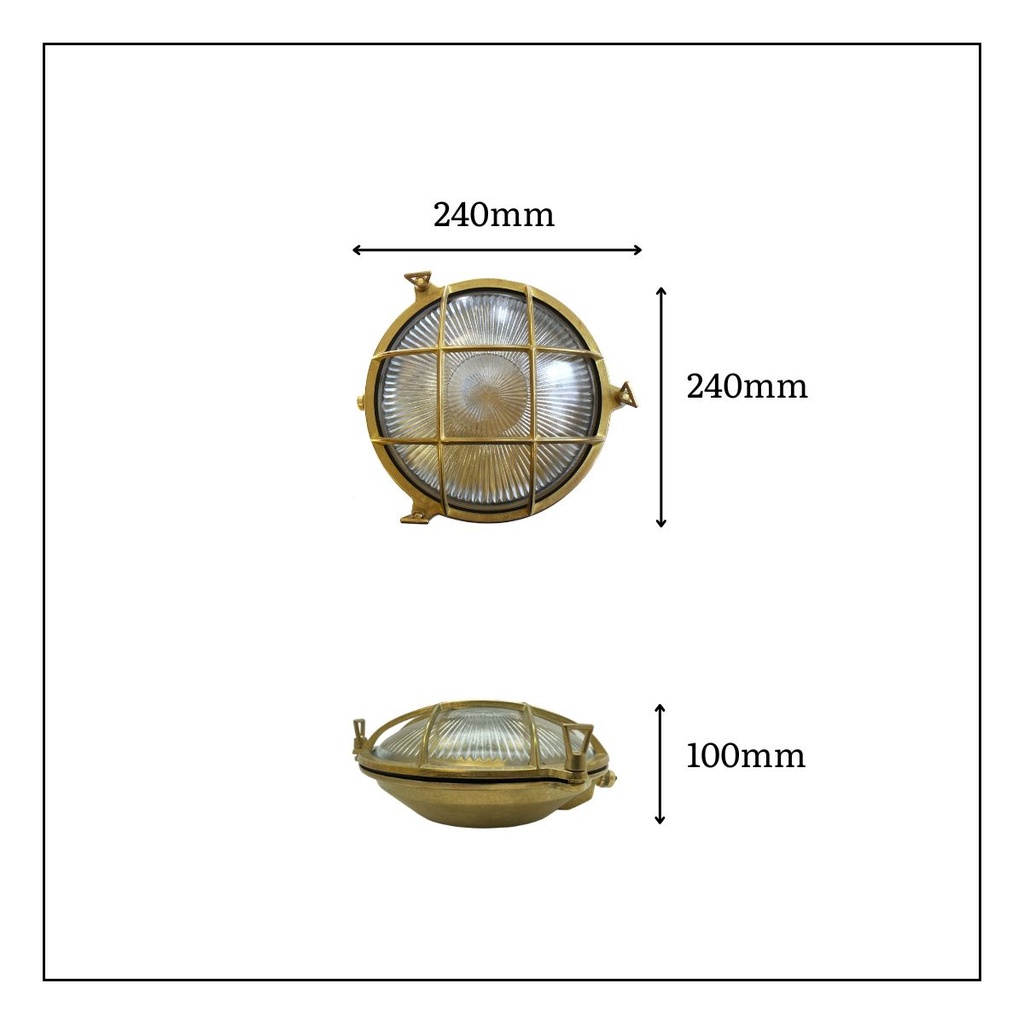

Length: 240mm
Width: 240mm
Depth: 100mm

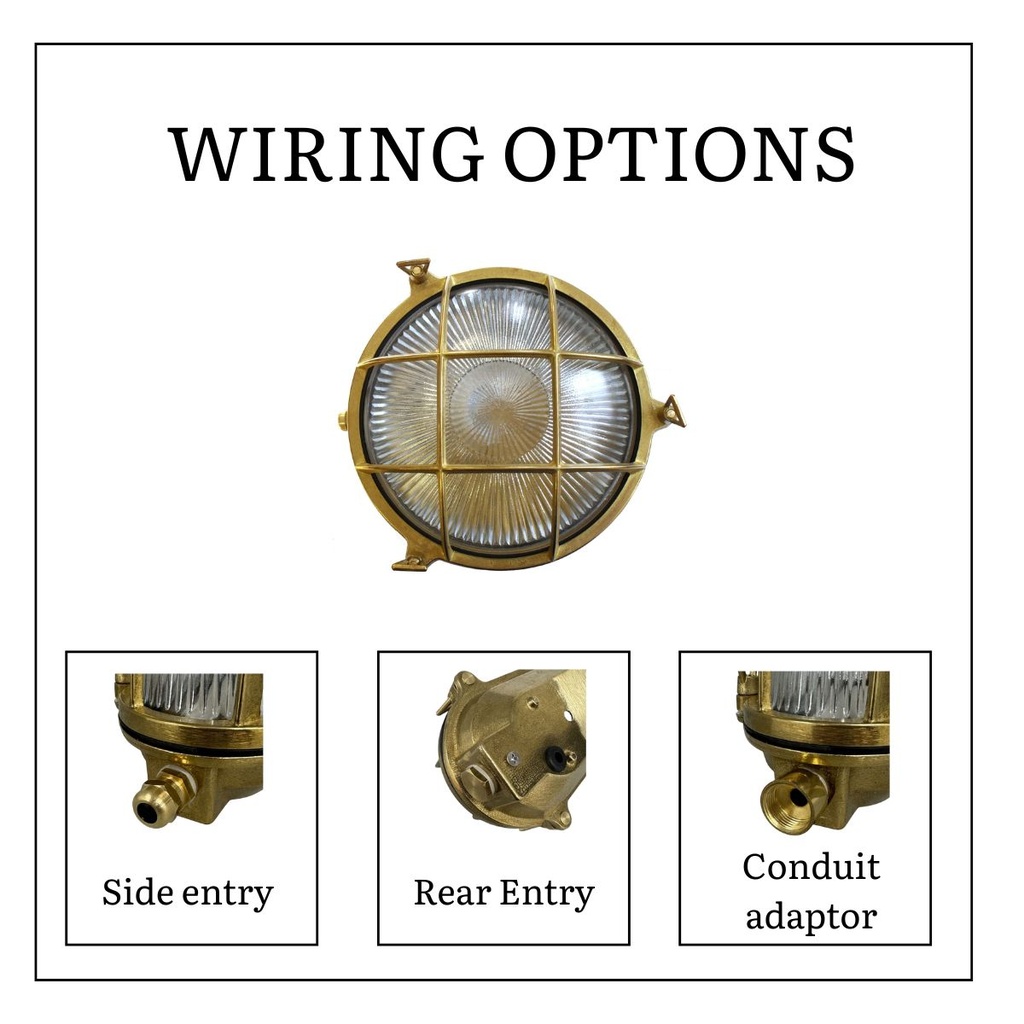

Cable Gland entry at end or rear (Brass blank to replace gland included).
Conduit adaptor available separately.

£ 129.17 £ 129.17 (Tax included)

  • Finish Options
Add to cart Buy now
Add to wishlist
Contact Us
Documents
NAVIGATOR BIM FILES - Grand Cabin Bulkhead.zip NAVIGATOR INSTALLATION INSTRUCTIONS - Grand Cabin Bulkhead- 09011, 05842, 09021.docx.pdf NAVIGATOR PRODUCT DATA SHEET - Grand Cabin Bulkhead -05842, 09011, 09021.pdf

The older (more superior) sibling to the small cabin bulkhead.  A classic porthole bulkhead, crafted from solid brass, with a grid cover for extra protection.  Making a quiet statement, whether on the front of a building, or lighting the way in an inn passageway.

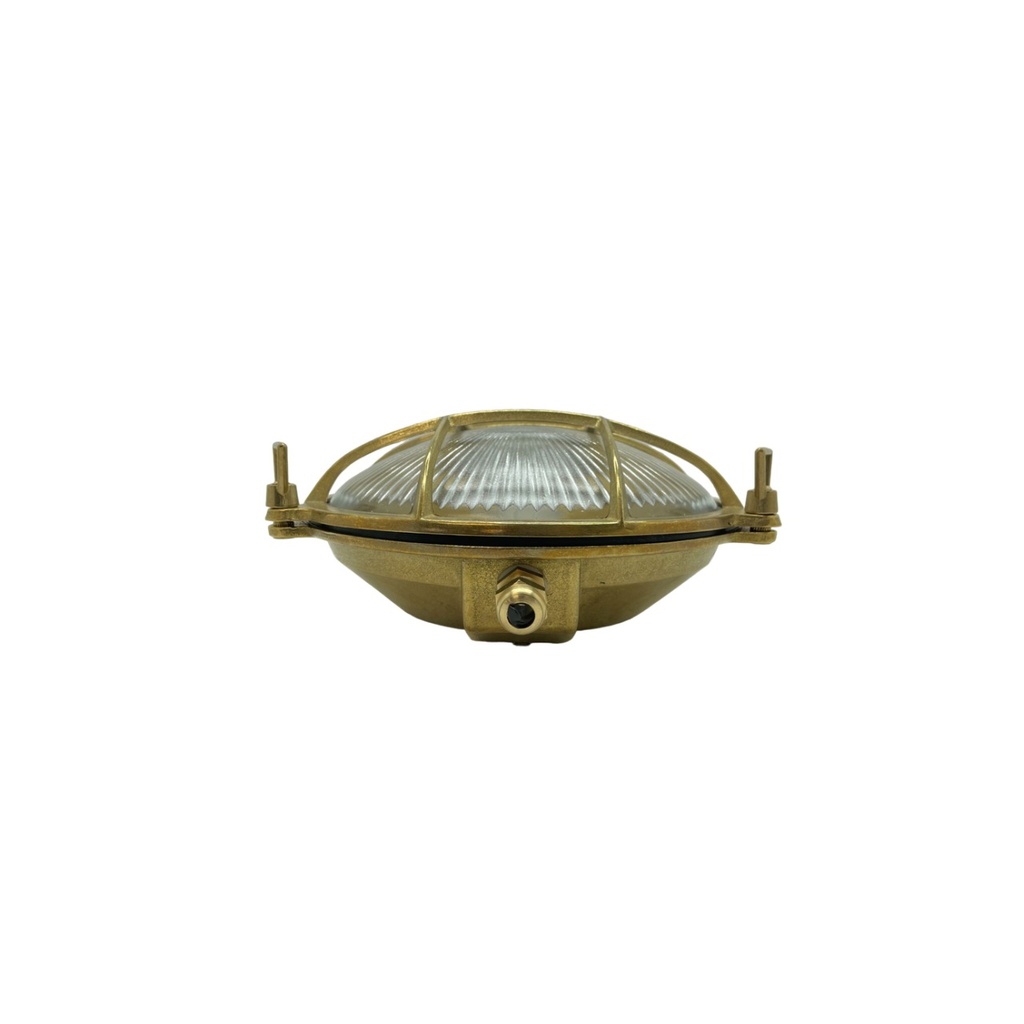

Our Navigator bulkheads have been designed for applications outdoors where an industrial or nautical effect is required. The solid brass body has an aged, original-looking finish. Cabling connection is achieved via side gland.

Before starting any electrical work, always switch off at the mains.  If in doubt consult a qualified electrician.

Warranty

2 years.
